Unlock the Power of Airborne ISR with S-PLANE’s X-ADT

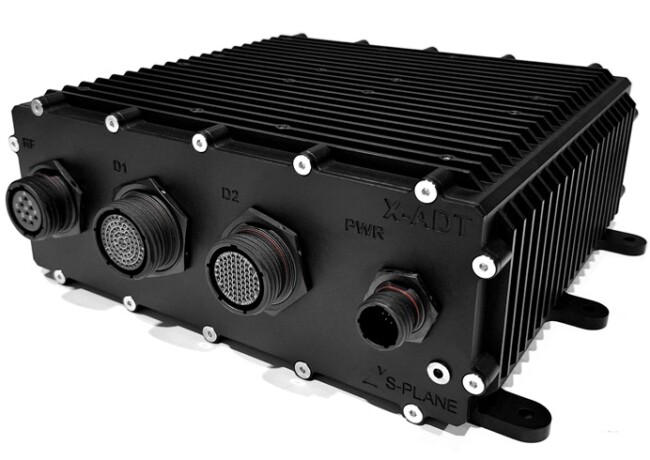

S-PLANE’s groundbreaking X-ADT is a compact, all-in-one solution designed to optimise your airborne ISR operations. This rugged, reliable, and self-contained subsystem combines payload control, HD-SDI video stream capture, onboard storage, communications management, I/O concentration, encryption, video transcoding, and Ethernet switching into a single unit. Qualified to RTCA DO-160, the X-ADT is engineered for the most demanding airborne environments.
Maximise Flexibility and Performance
With its high-performance onboard computer, the X-ADT allows you to run S-PLANE mission software, as well as your own or third-party containerized software. Seamlessly access high-definition payload data streams, onboard storage, and external I/O, enabling unparalleled flexibility for mission-critical tasks.
Optimised for Manned Aircraft and UAS
Whether you’re managing ISR payloads from a manned aircraft or remote UAV ground stations, the X-ADT ensures efficient and cost-effective operation of RADAR, EO/IR, and SIGINT equipment. When paired with S-PLANE’s ParagonISR Mission and ParagonC2 Command and Control Software, you unlock even greater mission effectiveness.
Unmatched Functionality at an Affordable Price
The X-ADT offers unparalleled airborne ISR capabilities in a single unit, all at a competitive price point. No other product combines this level of integration, reliability, and performance in such a small form factor.
Experience the Future of ISR with S-PLANE‘s Automation Innovation.
Learn more about how the X-ADT can transform your airborne ISR operations: Click Here
Features
Mission Computer
- Advanced onboard computing
- XMC expansion slots for GPUs (image processing and AI)
- Various S-PLANE mission software applications (see below)
- Client and 3rd party containerised applications
I/O Concentration
- Vast array of I/O for interface with ISR payloads and aircraft systems
- HD-SDI and analogue video capture
Communication Management
- LOS Communication management
- BLOS (SATCOM) Communication management
Payload Management
- EO/IR relay, interface and control
- Radar relay, interface and control
- AIS relay, interface and control
- SIGINT relay, interface and control
Storage and Data Management
- Onboard storage
- Encryption and decryption
- Video encoding and transcoding
- ISR database management and synchronisation
Specifications
| KEY HARDWARE SPECIFICATIONS | |
| Mass | 5.5 – 6.7 kg (build variant dependent) |
| Major Dimensions | 284 x 92.2 x 254 mm (w x h x d incl. connectors) |
| Cooling | Conduction (primary) and Convection (secondary) |
| Power | 10 to 32.2 VDC with dual redundancy and 90 W (nominal) to 175 W (maximum) power consumption |
| I/O | 8x Serial, 3x ARINC-429, 16x Discrete I/O, 8x Network, 4x Audio, 7x Video input, 1x Video output and 2x Host ports |
| Computational Performance | 2.7 GHz, 32,380 MFLOPS, 12-core, Intel x86 13th Gen i5 13600HRE, with 16 to 32 GB DDR3 RAM and 1 TB SSD |
| Environmental Specifications | RTCA DO-160, incl. Category B4 -40 to +71 degC operational temperature, Category B humidity, Category B 20 g/11 ms shock, and fixed-wing and helicopter operational vibration curves |
